Hydraulic Coil Decoiler 15 Tons

Product Code(s) : RMH15000M

Forming Line manufactures hydraulic decoilers with a coil carrying and decoiling capacity of 15Tons (15000kg) with loading car option.

General Features

We produce hydraulic decoilers that has a coil inner pressure function working with hydraulic system. For loading the coils, coil car is used. Engine and speed control systems are standard options in coil cars.

  • Coil Carrying Capacity : 15Ton (15000kg)
  • Coil Inner Diameter Clamping Capacity : 500-550 mm
  • Coil Outside Diameter Working Capacity : 1600mm
  • Working Width Capacity : 100mm - 1600mm
  • Coil Inner Pressure Function : Hydraulic Mandrel
  • Machine Working Movement : Left - Right
  • Inverter Motor with Speed Control

Photos

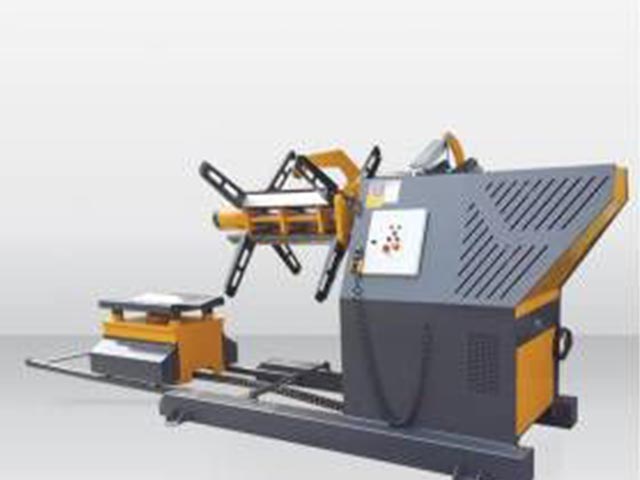

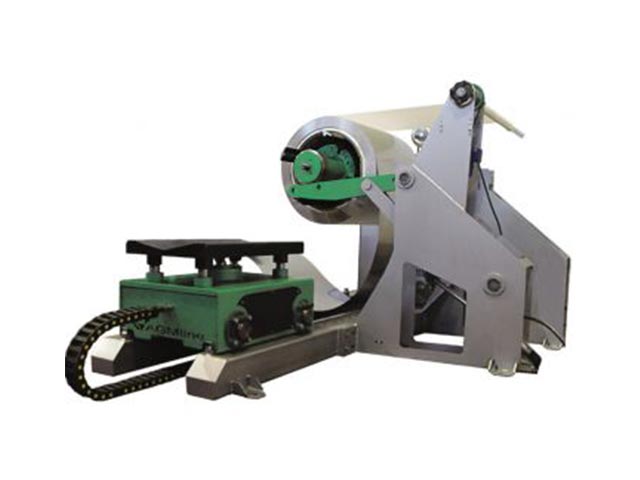

Photos of Hydraulic Coil Decoiler 15 Tons.

All pictures and photos shown are for illustration purpose only. Actual product may vary due to product enhancements.

Videos

Videos of Hydraulic Coil Decoiler 15 Tons.

Machine in the video is for visualization purposes only. Actual product may vary due to the product enhancements.

Technical Details Chart

* Some of the technical properties are subject to change during production without informing the customer.



MODEL Material
Width
(mm)		 Coil Inner
Diameter
(mm) Min		 Coil Inner
Diameter
(mm) Max		 Coil Outside
Diameter (mm)		 Coil Weight
(kg)		 Motor Mandrel
Expansion		 Snubber
Arm
RMH15000M 100 - 1000 500 550 1600 15000 + Hydraulic Standard
RMH15000M 150 - 1300 500 550 1600 15000 + Hydraulic Standard
RMH15000M 150 - 1600 500 550 1600 15000 + Hydraulic Standard
