Hydraulic Coil Decoiler 6 Tons

Product Code(s) : RMH600M

Forming Line manufactures hydraulic decoilers with a coil carrying and decoiling capacity of 6Tons (6000kg) with loading car option.

General Features

We produce hydraulic decoilers that has a coil inner pressure function working with hydraulic system. For loading the coils, coil car is used. Engine and speed control systems are standard options in coil cars.

  • Coil Carrying Capacity : 6Ton (6000kg)
  • Coil Inner Diameter Clamping Capacity : 470mm - 530mm
  • Coil Outside Diameter Working Capacity : 1500mm
  • Working Width Capacity : 75-1000mm
  • Coil Inner Pressure Function : Hydraulic Mandrel
  • Machine Working Movement : Left - Right
  • Inverter Motor with Speed Control

Photos

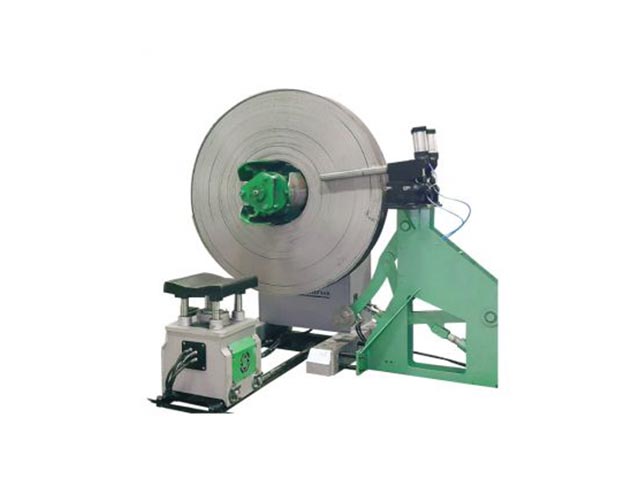

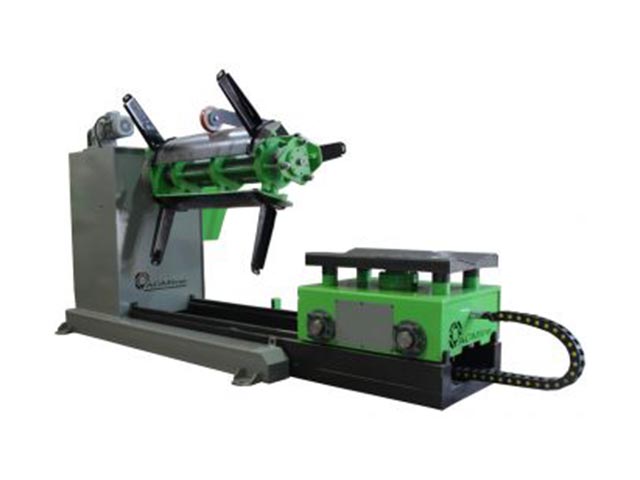

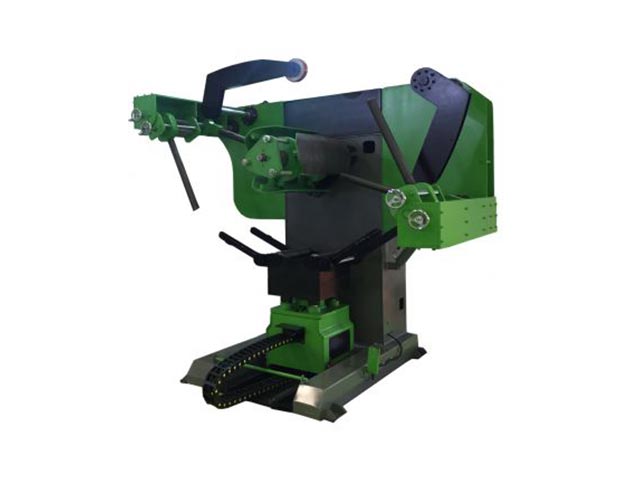

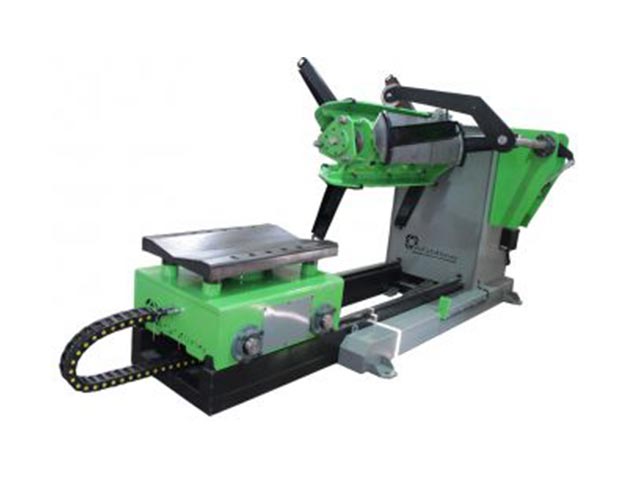

Photos of Hydraulic Coil Decoiler 6 Tons.

All pictures and photos shown are for illustration purpose only. Actual product may vary due to product enhancements.

Videos

Videos of Hydraulic Coil Decoiler 6 Tons.

Machine in the video is for visualization purposes only. Actual product may vary due to the product enhancements.

Technical Details Chart

* Some of the technical properties are subject to change during production without informing the customer.



MODEL Material
Width
(mm)		 Coil Inner
Diameter
(mm)
Min		 Coil Inner
Diameter
(mm)
Max		 Coil Outside
Diameter (mm)		 Coil Weight
(kg)		 Motor Mandrel
Expansion		 Snubber
Arm
RMH600M 75 - 600 470 530 1500 6000 + Hydraulic Standard
RMH600M 100 - 800 470 530 1500 6000 + Hydraulic Standard
RMH600M 100 - 1000 470 530 1500 6000 + Hydraulic Standard



Jump to: General Features | Photos | Videos
