Double Head Mechanical Decoilers

Product Code(s) : RMX750M | RMX1500M | RMX2500M | RMX3000 | RMX4000M | RMX6000HM | RMX10000HM

Forming Line manufactures double head mechanical decoilers with a coil carrying capacity of 500 kg - 4000 kg. If you want to increase carrying capacity our hydraulic decoilers are capable of carrying 6000 kg to 10000 kg.

General Features

Double head decoilers are a useful option on time management with capacity from 750 kg to 4.000 kg for mechanical models and 4.000 kg to 10.000 kg for hydraulic models. You can save time and have higher production capacities since it gives you option to load the spare coild during the decoiling operation of the main coil.

  • Coil Carrying Capacity : 750kg - 4.000kg for mechanical decoilers
  • Coil Carrying Capacity : 4.000kg - 10.000kg for hydraulic decoilers
  • Number of Decoiler Heads : 2

Photos

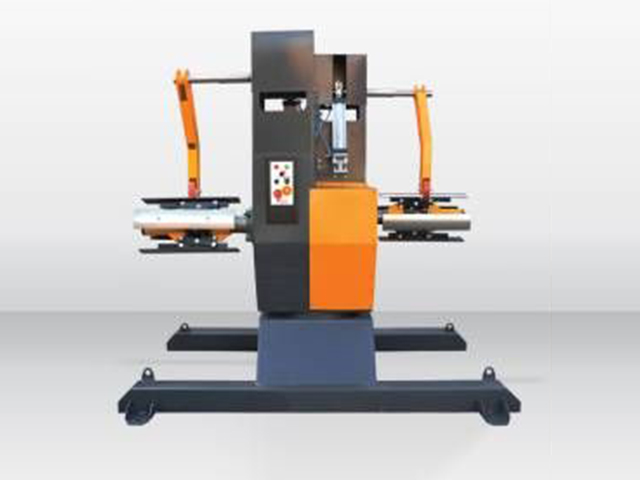

Photos of Double Head Mechanical Decoilers.

All pictures and photos shown are for illustration purpose only. Actual product may vary due to product enhancements.

Videos

Videos of Double Head Mechanical Decoilers.

Machine in the video is for visualization purposes only. Actual product may vary due to the product enhancements.

Technical Details Chart

* Some of the technical properties are subject to change during production without informing the customer.



MODEL Material
Width
(mm)		 Coil Inner
Diameter
(mm) Min		 Coil Inner
Diameter
(mm) Max		 Coil Outside
Diameter (mm)		 Coil Weight
(kg)		  Motor Brake Snubber
Arm
RMX750M 20 - 300 300 550 1500 750 + - Optional
RMX1500M 20 - 400 350 550 1500 1500 + - Optional
RMX2500M 30 - 500 400 550 1500 2500 + - Optional
RMX3000M 30 - 600 450 550 1500 3000 + - Optional
RMX4000M 70 - 800 470 530 1500 4000 + - Optional
RMX6000HM 70 - 800 490 530 1500 6000 + - Optional
RMX10000HM 100 - 1000 490 530 1500 10000 + - Optional
