Servo Feeders With Case

General Features

Forming Line's cased servo feeders have sheet working capacity between 40 mm to 1600 mm width and 0,4mm to 5mm thickness.

The machine can also be used as plate sheet feeder with auxiliary equipment.

  • Working Width Capacity : 40mm - 1600mm
  • Sheet Thickness Capacity: 0.4mm - 5mm

Photos

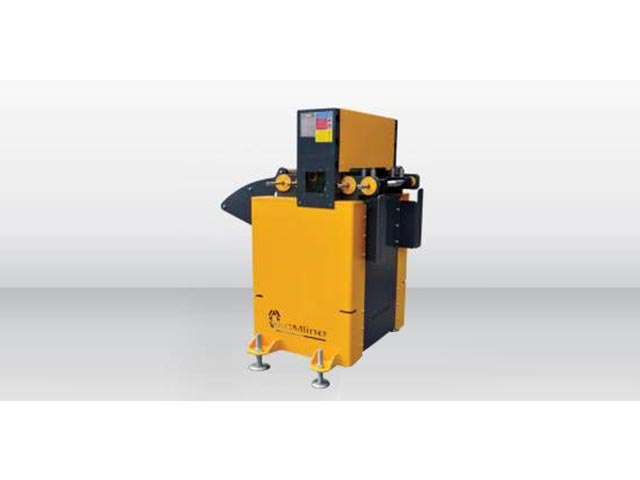

Photos of Servo Feeders with Case

All pictures and photos shown are for illustration purpose only. Actual product may vary due to product enhancements.

Videos

Videos of Servo Feeders with Case.

Machine in the video is for visualization purposes only. Actual product may vary due to the product enhancements.

Technical Details Chart

* Some of the technical properties are subject to change during production without informing the customer.

MODEL Material
Width
(mm)		 Material
Thickness
(mm)
Min		 Material
Thickness
(mm)
Max		 Continuous
Speed
(m/min)		 Feeder Roll
Diameter
(mm)		 Control
System		 Press
Control		 Feed
Length
(mm)
RMC303 40 - 300 0.4 3 35 / 60 85 Servo Sensor 9999.99
RMC403 40 - 400 0.4 3 35 / 60 85 Servo Sensor 9999.99
RMC403 60 - 600 0.4 3 35 / 60 85 Servo Sensor 9999.99
RMC803 70 - 800 0.4 3 35 / 60 85 Servo Sensor 9999.99
RMC1003 110 - 1000 0.4 3 35 / 60 85 Servo Sensor 9999.99
RMC1303 250 - 1300 0.4 3 35 / 60 85 Servo Sensor 9999.99



* Some of the technical properties are subject to change during production without informing the customer.

MODEL Material
Width
(mm)		 Material
Thickness
(mm)
Min		 Material
Thickness
(mm)
Max		 Continuous
Speed
(m/min)		 Feeder Roll
Diameter
(mm)		 Control
System		 Press
Control		 Feed
Length
(mm)
RMC305 40 - 300 0.8 5 32 / 44 110 Servo Sensor 9999.99
RMC405 40 - 400 0.8 5 32 / 44 110 Servo Sensor 9999.99
RMC605 60 - 600 0.8 5 32 / 44 110 Servo Sensor 9999.99
RMC805 70 - 800 0.8 5 32 / 44 110 Servo Sensor 9999.99
RMC1005 110 - 1000 0.8 5 32 / 44 110 Servo Sensor 9999.99
RMC1305 250 - 1300 0.8 5 32 / 44 110 Servo Sensor 9999.99
RMC1605 400 - 1600 0.8 5 32 / 44 110 Servo Sensor 9999.99
