Straightener Servo Feeders with 12 Rolls

General Features

Forming Line's RMS Series Servo Feeders with Straightener are produced in 3 main groups and have working sizes between 30mm to 1600mm width and 0,3 mm to 6 mm thickness. Following are the properties of the second group (with 12 rolls) :

  • Working Width Capacity : 30mm - 1600mm
  • Sheet Thickness : 1mm - 6mm
  • Number of Mold Memory : 250 Molds
  • Number of Different Entries for Feeding Length : 50
  • Addition of External Output : 8
  • Colorful LCD Touch Screen
  • Mold Protection and Lubrication System

Photos

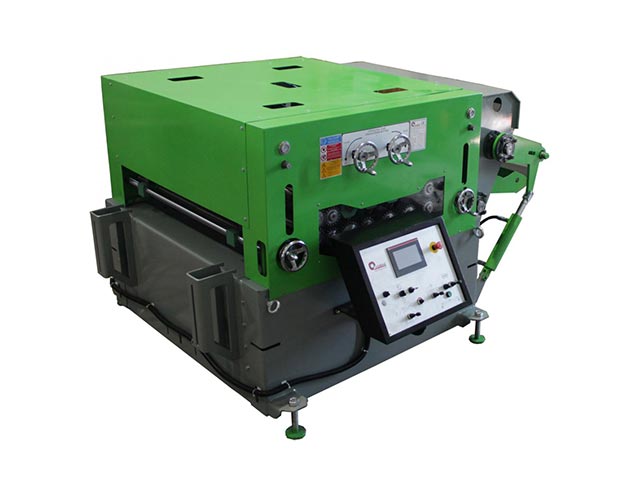

Photos of Straightener Servo Feeders with 12 Rolls

All pictures and photos shown are for illustration purpose only. Actual product may vary due to product enhancements.

Videos

Videos of Straightener Servo Feeders with 12 Rolls

Machine in the video is for visualization purposes only. Actual product may vary due to the product enhancements.

Technical Details Chart

* Some of the technical properties are subject to change during production without informing the customer.



MODEL Material
Width
(mm)		 Material Thickness (mm)
Min		 Material Thickness (mm)
Max		 Continuous Speed
(m/min)		 Feeder Roll Diameter (mm) Number of Feeder Pinch Rolls Number of Straightener Rolls Control System
RMS12-306 30 - 300 1 6 32 110 2 + 2 8 Servo
RMS12-406 40 - 400 1 6 32 110 2 + 2 8 Servo
RMS12-606 60 - 600 1 6 32 110 2 + 2 8 Servo
RMS12-806 70 - 800 1 6 32 110 2 + 2 8 Servo
RMS12-1006 150 - 1000 1 6 32 110 2 + 2 8 Servo
RMS13-1306 400 - 1300 1 6 32 110 2 + 2 8 Servo
RMS13-1606 500 - 1600 1 6 32 110 2 + 2 8 Servo
